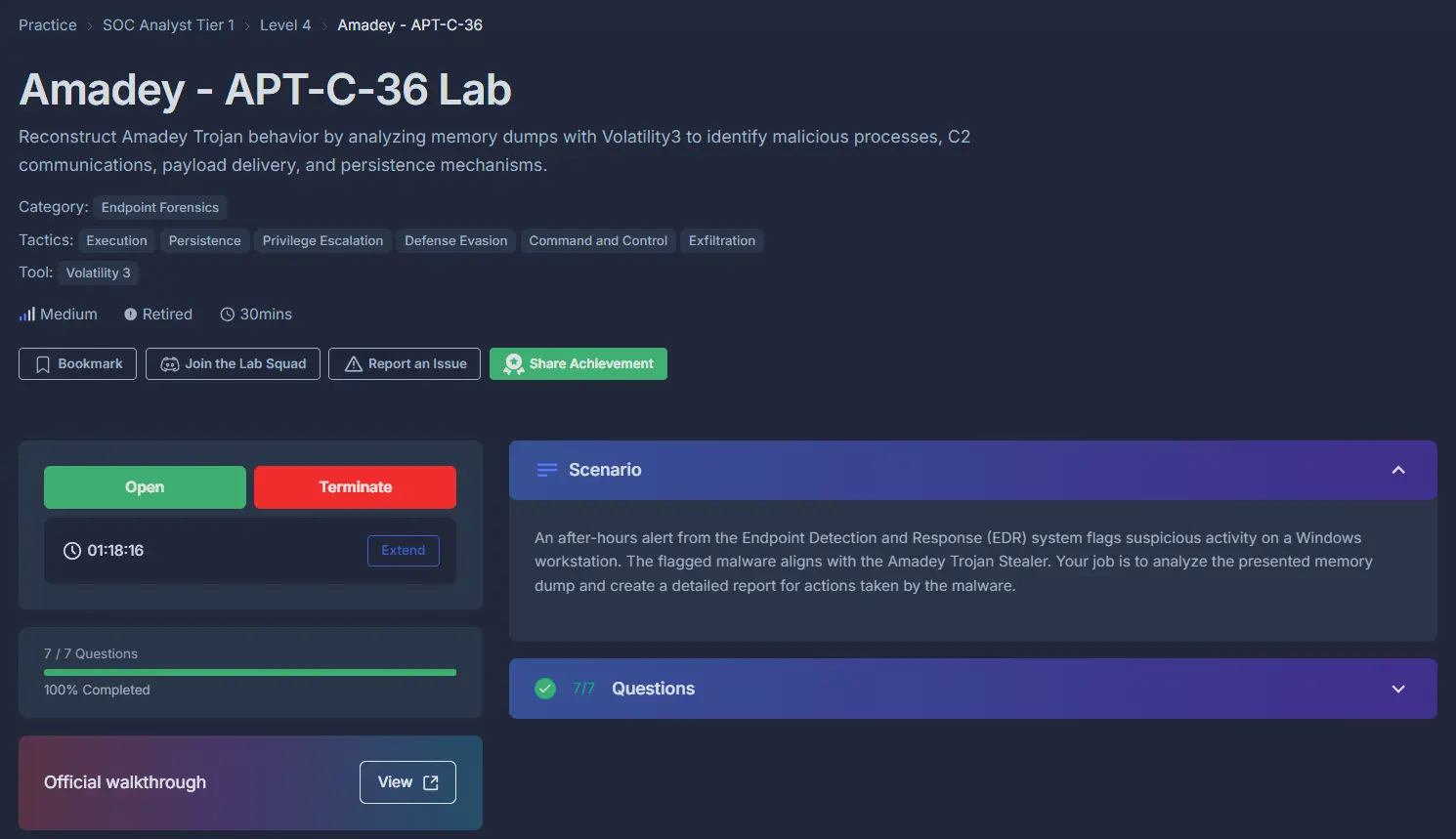

Amadey - APT-C-36 Lab (CyberDefenders - Medium)

Scenario

An after-hours alert from the Endpoint Detection and Response (EDR) system flags suspicious activity on a Windows workstation. The flagged malware aligns with the Amadey Trojan Stealer. Your job is to analyze the presented memory dump and create a detailed report for actions taken by the malware.

Questions

Q1 — Identifying the Malicious Parent Process

In the memory dump analysis, determining the root of the malicious activity is essential for comprehending the extent of the intrusion. What is the name of the parent process that triggered this malicious behavior?

Approach: Inspect pslist for duplicate or suspicious process names, then use cmdline to confirm the execution path.

Let’s have a look at the pslist and see if anything immediately stands out.

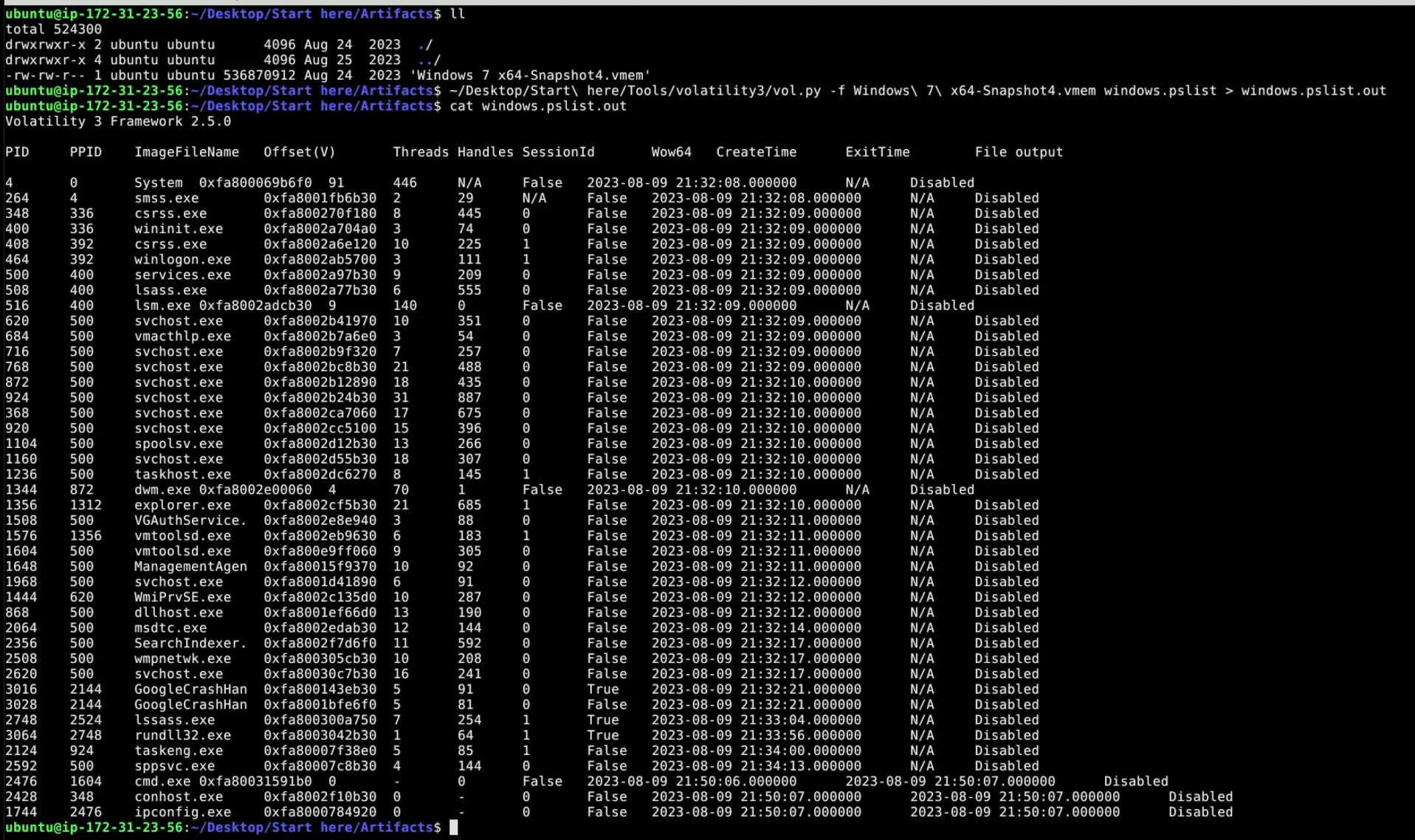

Pslist output showing two instances of lsass.exe

If we manually look through the list we will see immediately two instances of lsass.exe. This is highly suspect as there should be one legitimate instance of lsass.exe. Furthermore, if we inspect the other instance of this program we will see that the name has a typo in it. The actual process name is lssass.exe.

Let’s also check how this was invoked using cmdline.

Cmdline output showing the suspicious process running from a Temp directory

We can see from the output that the this process resides in a directory not typical of that of lsass.exe. Furthermore, it is running from a Temp directory. It is very likely that this program is a malicious executable masquerading as the legitimate lsass.exe.

If we also grep it’s PID 2748 we will find that it spawns a rundll32.exe. This is characteristic of malware using living off the land techniques to execute malicious DLLs at runtime.

grep of PID 2748 revealing the spawned rundll32.exe child process

Answer: lssass.exe

Q2 — Process Location on Disk

Once the rogue process is identified, its exact location on the device can reveal more about its nature and source. Where is this process housed on the workstation?

Approach: Confirm the path via cmdline output and cross-check with filescan.

We have already identified where the executable resides through the output of cmdline. Another approach to this question is through the use of filescan since we already know the name of the malicious executable.

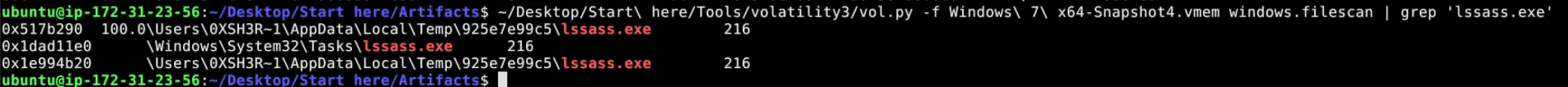

filescan output showing lssass.exe in the Temp directory and also in \Windows\System32\Tasks

Which outputs another interesting finding as well, which is that lssass.exe also resides in \Windows\System32\Tasks. This means that the malicious process is using task scheduler as one of its methods to maintain persistence.

Answer: C:\Users\0XSH3R~1\AppData\Local\Temp\925e7e99c5\lssass.exe

Q3 — C2 Server IP Address

Persistent external communications suggest the malware’s attempts to reach out C2C server. Can you identify the Command and Control (C2C) server IP that the process interacts with?

Approach: Use netscan filtered to the malicious process to identify external connections.

Having identified the name of the malicious executable, we can check if it had established any connections to external servers through the use of grep and netscan.

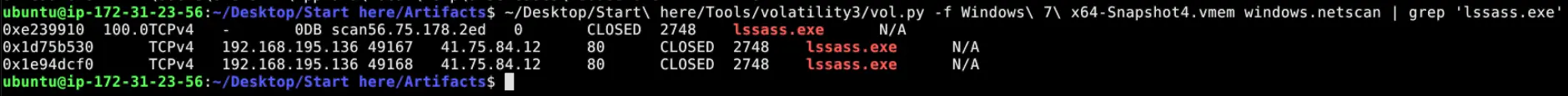

netscan output showing lssass.exe connected to 41.75.84.12 over HTTP

We can see here that it connected to 41.75.84.12 which is in the public IP address range. Furthermore, the connection was HTTP.

Answer: 41.75.84.12

Q4 — Files Downloaded from C2

Following the malware link with the C2C, the malware is likely fetching additional tools or modules. How many distinct files is it trying to bring onto the compromised workstation?

Approach: Dump the process memory with memmap, run strings, then grep for GET requests to identify fetched files.

For this we need to do a memmap of the lssass.exe process. This is because when a program makes a GET request for a file, the response data must live somewhere in RAM before the program can even use it. That somewhere is the process’s virtual memory which is exactly what memmap captures.

~/Desktop/Start\ here/Tools/volatility3/vol.py -o ~/Desktop/Start\ here/Artifacts/ -f Windows\ 7\ x64-Snapshot4.vmem windows.memmap --dump --pid 2748

Then perform a strings on the dump to extract readable strings. We can then use grep to search for GET requests.

grep output revealing two GET requests for cred64.dll and clip64.dll

We see that two get requests are being made for files:

/rock/Plugins/cred64.dll
/rock/Plugins/clip64.dll

Therefore, the malware tried to fetch 2 additional DLLs.

Answer: 2

Q5 — Full Path of Downloaded File

Identifying the storage points of these additional components is critical for containment and cleanup. What is the full path of the file downloaded and used by the malware in its malicious activity?

Approach: Check cmdline for the arguments passed to rundll32.exe to identify which DLL was executed and from where.

We already know that lssass.exe uses rundll32.exe. We can check what arguments rundll32.exe was invoked with to determine what was executed.

cmdline showing the argument passed to rundll32.exe pointing to clip64.dll

Answer: C:\Users\0xSh3rl0ck\AppData\Roaming\116711e5a2ab05\clip64.dll

Q6 — Child Process for Execution

Once retrieved, the malware aims to activate its additional components. Which child process is initiated by the malware to execute these files?

We already know this from the previous questions. The malware uses rundll32.exe to execute the fetched files.

Answer: rundll32.exe

Q7 — Additional Persistence Location

Understanding the full range of Amadey’s persistence mechanisms can help in an effective mitigation. Apart from the locations already spotlighted, where else might the malware be ensuring its consistent presence?

We already found this in Q2 when we grepped for lssass.exe in the filescan output.

In that output we saw that lssass.exe also resided in \Windows\System32\Tasks. Which means that there is a scheduled task for the executable likely being used as part of its persistence strategy.

Answer: C:\Windows\System32\Tasks\lssass.exe
